Simple Digital Function Generator

Friday, 08 February 2008 14:11

Capable of generating like any waveform in 8 bit

Quick and dirty. As soon as it was ready, it got hooked up with another function generator and pluged into my stereo, then hours passed, me playing with a simple oscillator :)

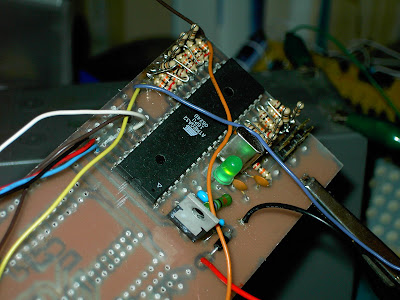

The pcb:

It became somewhat compact. The fat ic is the AVR Atmega 32.
It got a button to switch waveforms and a poti at one adc to set the frequency.

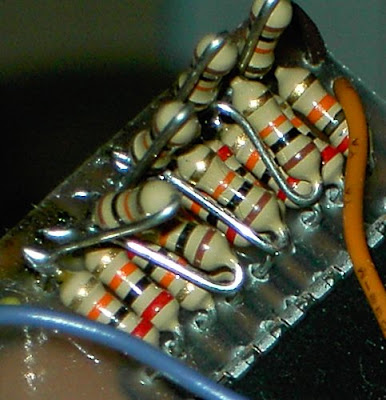

One resistor network as dac (digital to analog converter):

Last Updated on Wednesday, 13 August 2008 10:16
